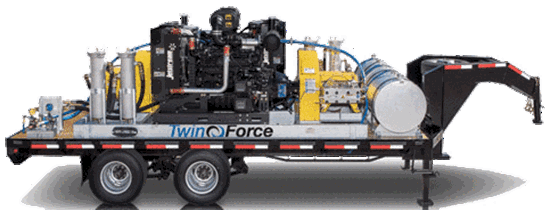

The TwinForce™ 650 hp unit water-blast system features a John Deere Tier 4 engine and is designed for high-flow applications, including industrial cleaning, tank cleaning, and hydrodemolition. It functions as a large-capacity 650 hp unit or as two 325 hp independently run units. The TwinForce unit is built around the UNx fluid end water-blast system allowing for quick conversions from 8,000 to 40,000 psi operating pressrues in minutes.
Key Specs
- Maximum Power: 650 hp
- Maximum Operating Pressure: 23.8 gpm at 40,000 psi
- Minimum Operating Pressure: 125.4 gpm at 8,000 psi
Key Features
- Two complete units with three functional options
- Multiple flow rates for high-capacity applications
- Jetstream UNx™ Fluid End system for greater in-the-field versatiltiy
- Dual pressure control station for increased efficiency
- Galvanized frame that provides top-of-the-line corrosion protection
Performance Specifications
325 HP (Units Run Individually)
| Pressure (psi) |
8,000 |
9,500 |
12,500 |
15,000 |
20,000 |
20,000 |
40,000 |
| Plunger Size |
16 |
15 |
13 |
12 |
11 |
10 |
8 |
| Flow (gpm) |
62.7 |
50.4 |
40.2 |
32.5 |
25.2 |
21.4 |
11.9 |
650 HP (Dual Units Combined)
| Pressure (psi) |
8,000 |
9,500 |
12,500 |
15,000 |
20,000 |
20,000 |
40,000 |
| Plunger Size |
16 |
15 |
13 |
12 |
11 |
10 |
8 |
| Flow (gpm) |
125.4 |
100.8 |
80.4 |
65.0 |
50.4 |
42.8 |
23.8
|
Available now for rent or purchase and comes with nationwide service and support.Find a rental center near you.
